PLC 201 304 Stainless Steel Coil Slitting Machine

Name: PLC 201 304 Stainless Steel Coil Slitting Machine
Brand: ZTZG
Price: 1 USD

China PLC 201 304 Stainless Steel Coil Slitting Machine wholesale

Brand Name : ZTZG

Model Number : 123

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/year

Delivery Time : 120 days

Packaging Details : All mechanical equipment is nude packing and electrical parts are packed in wooden cases

Name : Stainless Steel 201 & 304 Steel Coil Slitting Machine

Material Thickness(mm) : 0.5 - 6mm

Cutting Speed(m/min) : 40 - 60 m/min

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : PLC, Engine, Gear, Pump

Leveling Precision(±mm/m) : 0.02 ±mm/m

Key Selling Points : Long Service Life

After-sales Service Provided : Field installation, commissioning and training, Online support

Applicable Industries : Construction works , Building Material Shops, Machinery Repair

Function : Metal processing

Usage : Plate cutting

Contact Now

Product description

Description &Function 1,What is Cut To Length Machine The Cut To Length Machine also called cut to length line which are used for uncoiling,leveling and cutting the metal coil into the required length of flat sheet material and stacking.It suitable for processing cold rolled and hot rolled steel, coil,galvanized steel coil,silicon steel coil, stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well 2,Function This equipment through the procedure of uncoiling, leveling, precision gauge cutting, processing the strip steel coil into required steel pate. It mainly composed of uncoiler, pincher and leveler, gauge, cutting machine , stacker, etc, with assists of feeder, side guiding device, transition, and conveyor, etc. 3,Category According to the metal materials there are stainless steel cut to length machine,silicone steel cut to length machine,cold or hot rolled plate cut to length machine and so on. According to its electronic control mode there are pneumatic cut to length line,NC cut to length line and etc..

ITEM		PARAMETER
Specifications	Material	Mild Steel Q235/Q345, YS≦260Mpa TS≦350Mpa
	Thickness	8mm—25mm
	Width	80mm—2500mm
	Coil plate I.D.	Φ500━Φ800mm
	Coil plate E.D.	Φ1000mm—Φ2100mm
	Max. weight	40T
Finish product’s specification	Gauge length for cutting	2000mm—12000mm
Finish product’s specification	Cutting precision: Length tolerance Diagonal tolerance Others	±1.0mm/2m ±1.0mm/2m 1.5mm/2m in accordance with GB/T709-88 stipulation
Leveling speed(by 8m plate)		0—18m/min
Max thickness		25mm
Line elevation		1000mm
Total power consumption		About 430kw

Product parameter

  	 		 		 	 	 			Name 			Stainless Steel 201 & 304 Steel Coil Slitting Machine
 			Material Thickness(mm) 			0.5 - 6mm
 			Cutting Speed(m/min) 			40 - 60 m/min
 			Video outgoing-inspection 			Provided
 			Warranty of core components 			1 Year
 			Core Components 			PLC, Engine, Gear, Pump
 			Leveling Precision(±mm/m) 			0.02 ±mm/m
 			Key Selling Points 			Long Service Life
 			After-sales Service Provided 			Field installation, commissioning and training, Online support
 			Applicable Industries 			Construction works , Building Material Shops, Machinery Repair
 			Function 			Metal processing
 			Usage 			Plate cutting

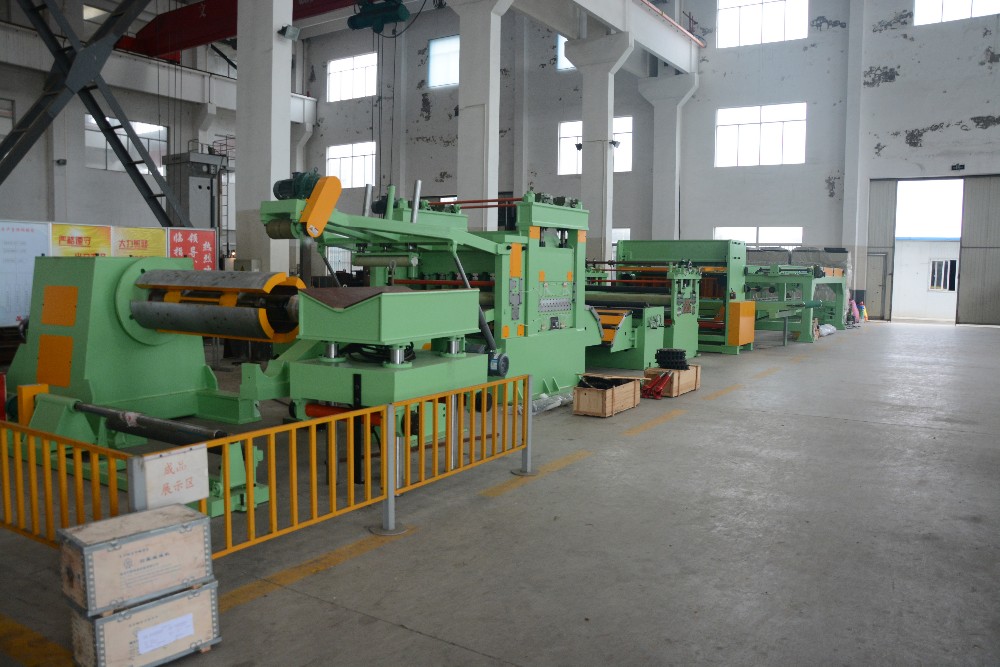

PLC 201 304 Stainless Steel Coil Slitting Machine

Automatic cable tray roll forming machine

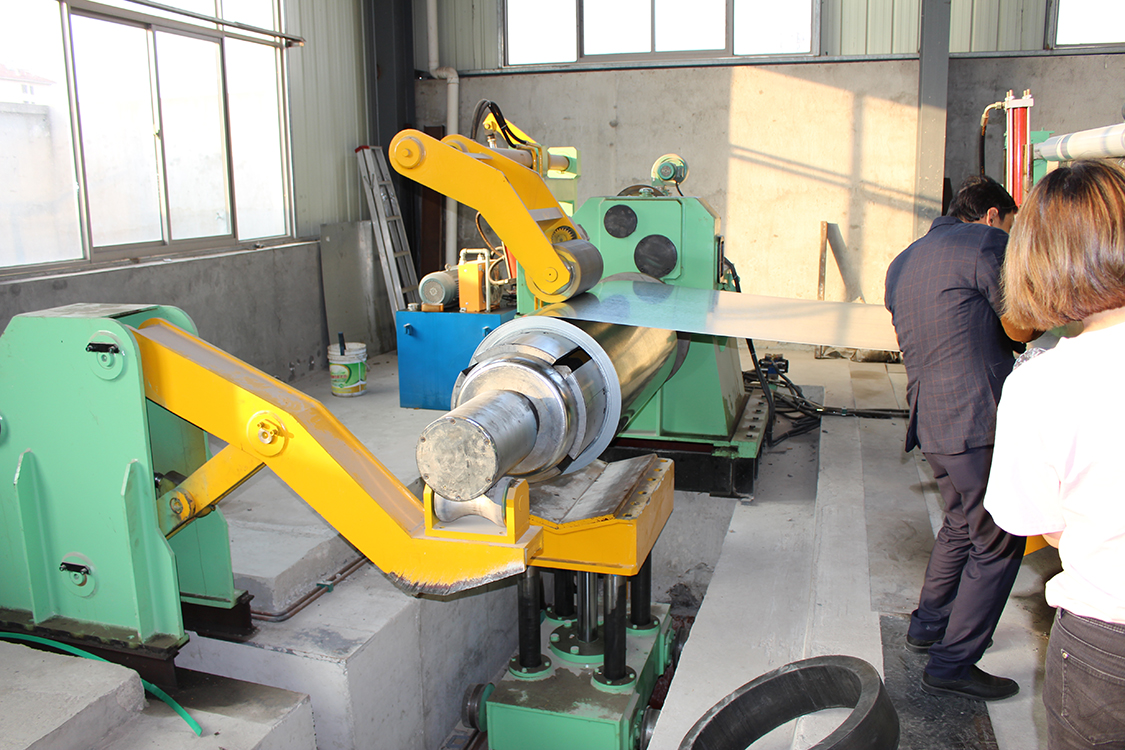

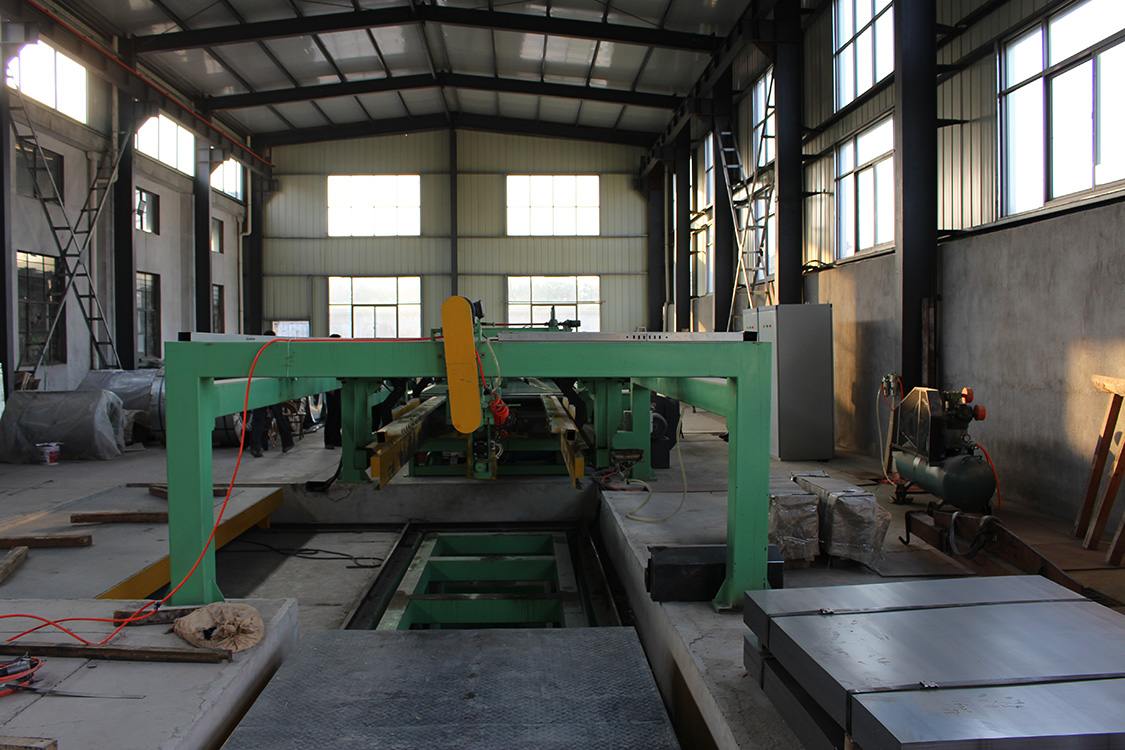

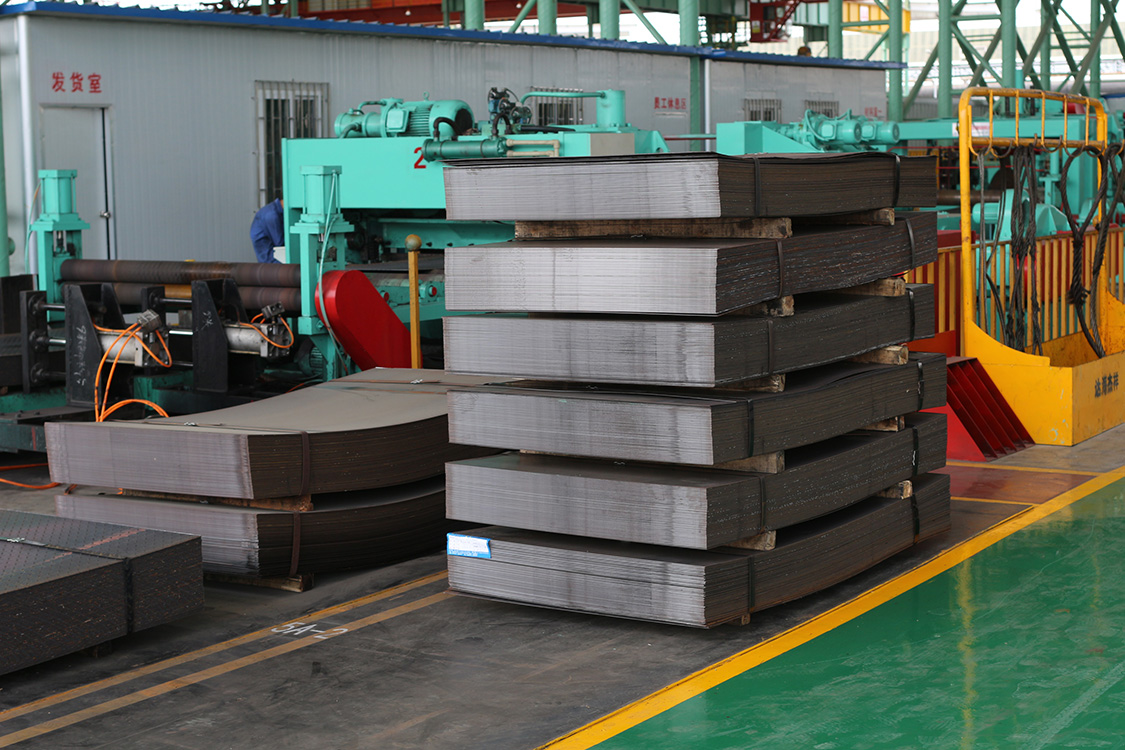

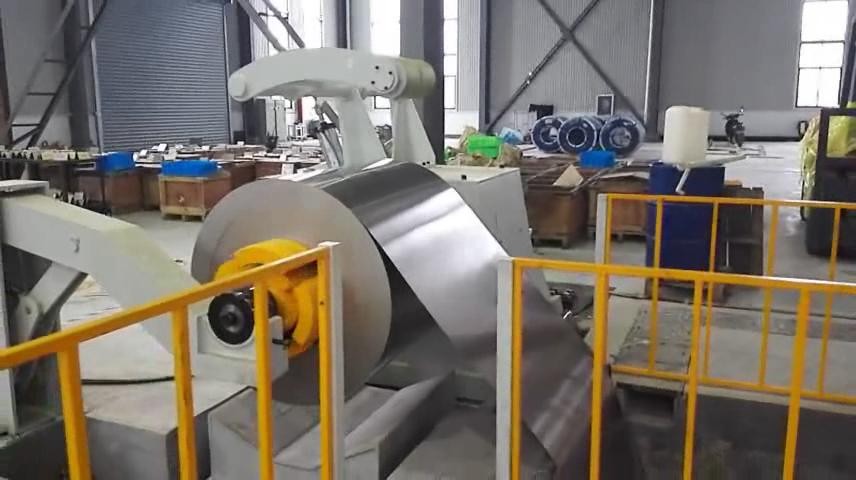

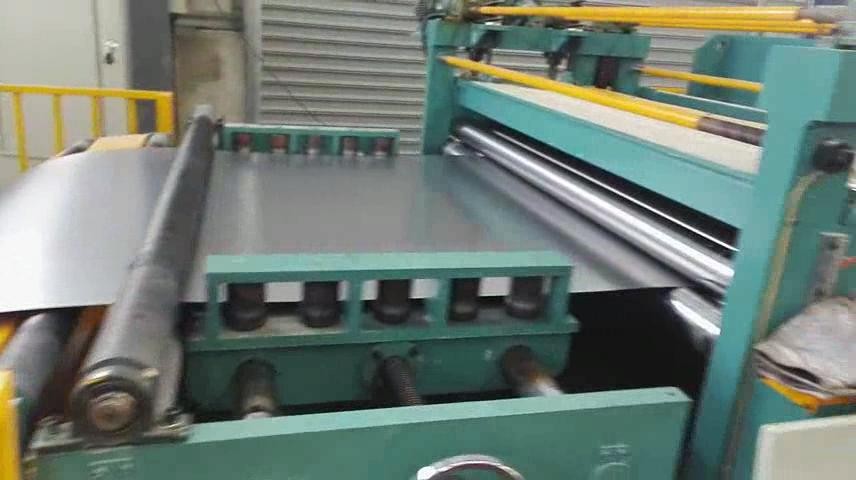

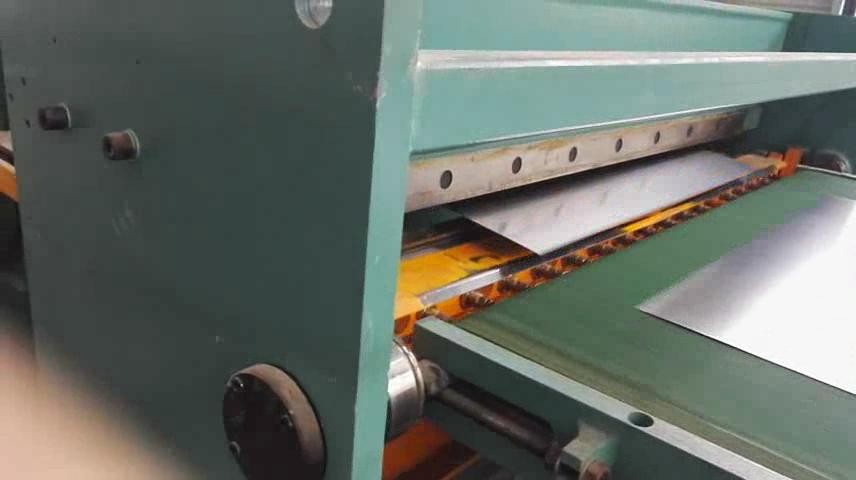

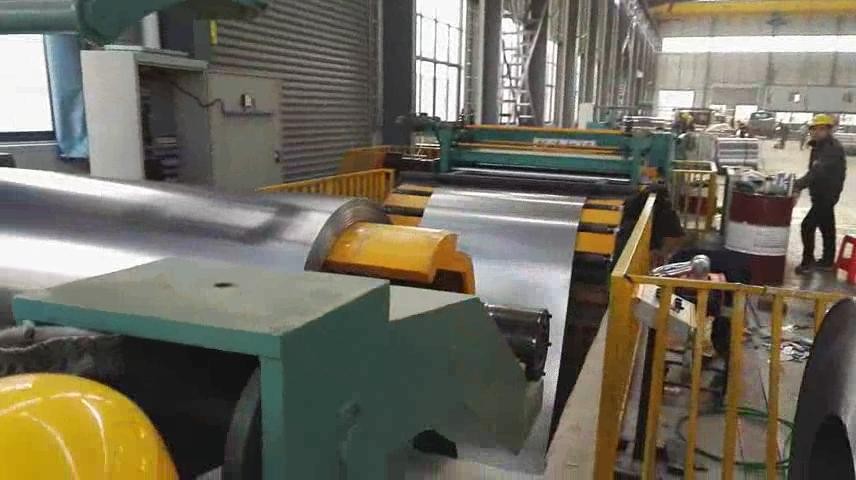

Scene appiation and quality inspection

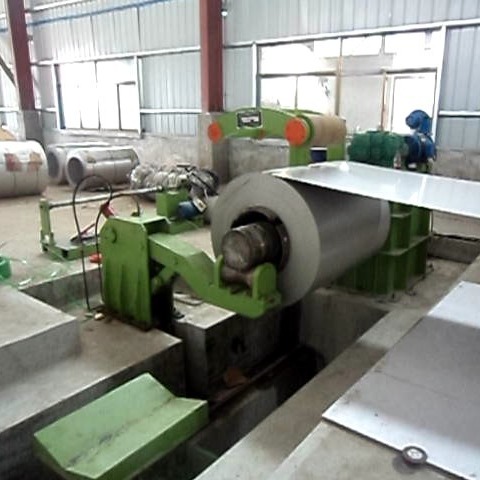

PLC 201 304 Stainless Steel Coil Slitting Machine

Product Description

Cut to Length Shearer Economical Cut to Length Machine Line

This cut to length machine line is used for uncoiling, leveling, and automatic length measuring and cutting. Electrical controlling by AC variable frequency and servo control, which has better length precision and efficiency.

Application:It is suitable for cut the metal coils to sheets/plates.
 Advantages:Easy to operate, cut to length quality is high, excellent material utilization, Stepless shearing speed regulation, etc.
 Structure:It consists of uncoiler, feeding and positioning, cutting unit, stack, etc.
 Applicable materials:Tinplate, silicon steel, aluminum, copper, stainless steel and galvanized steel, etc.

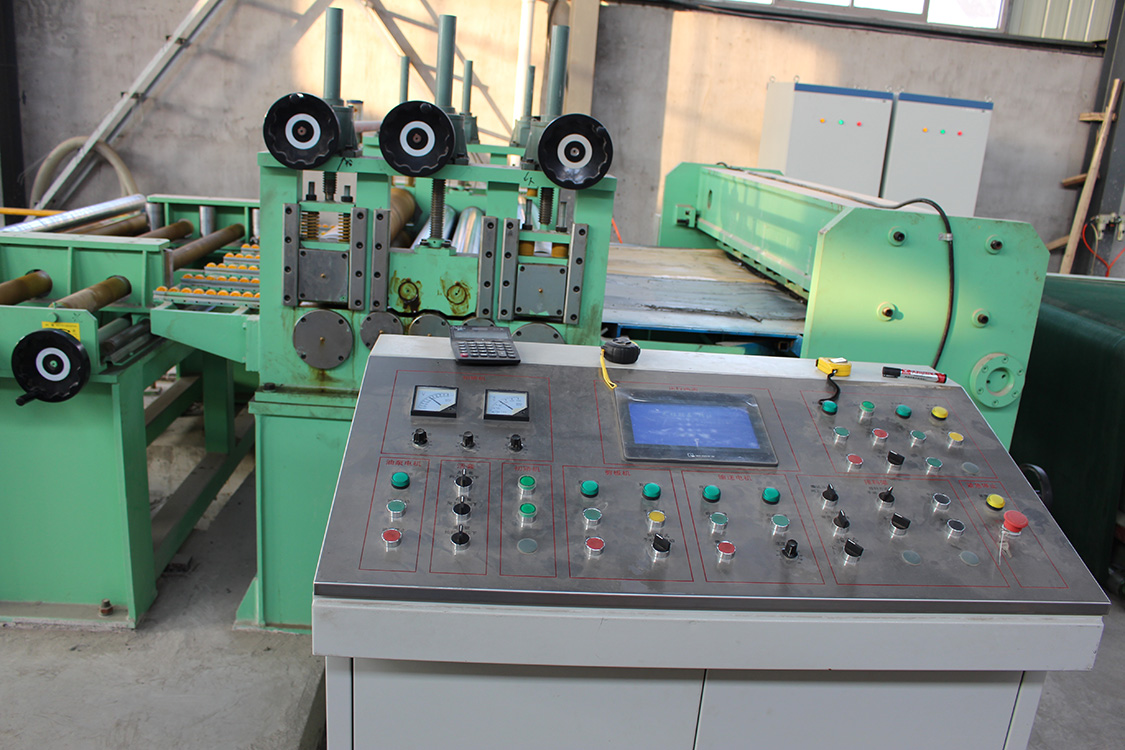

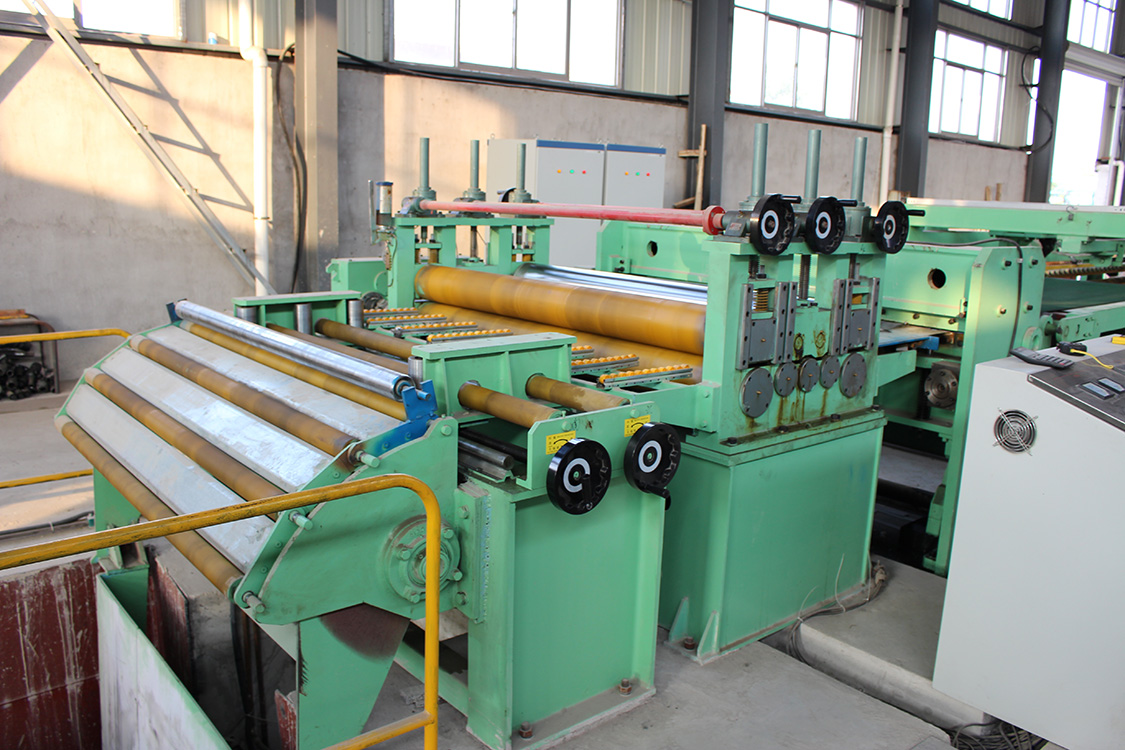

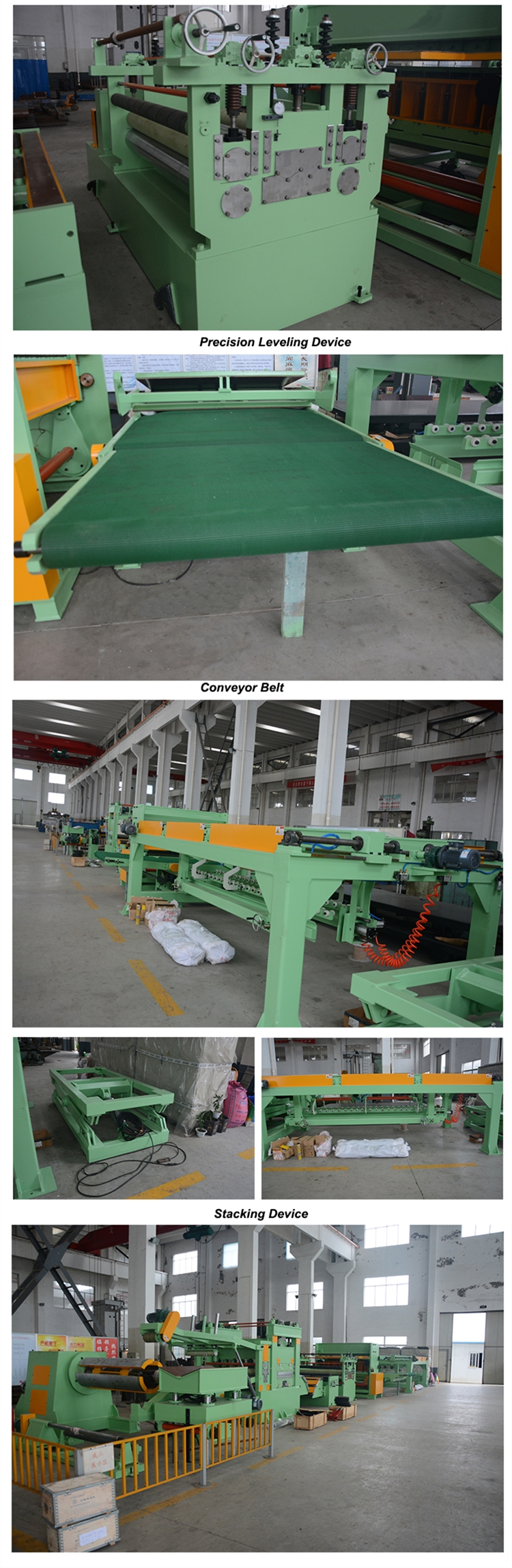

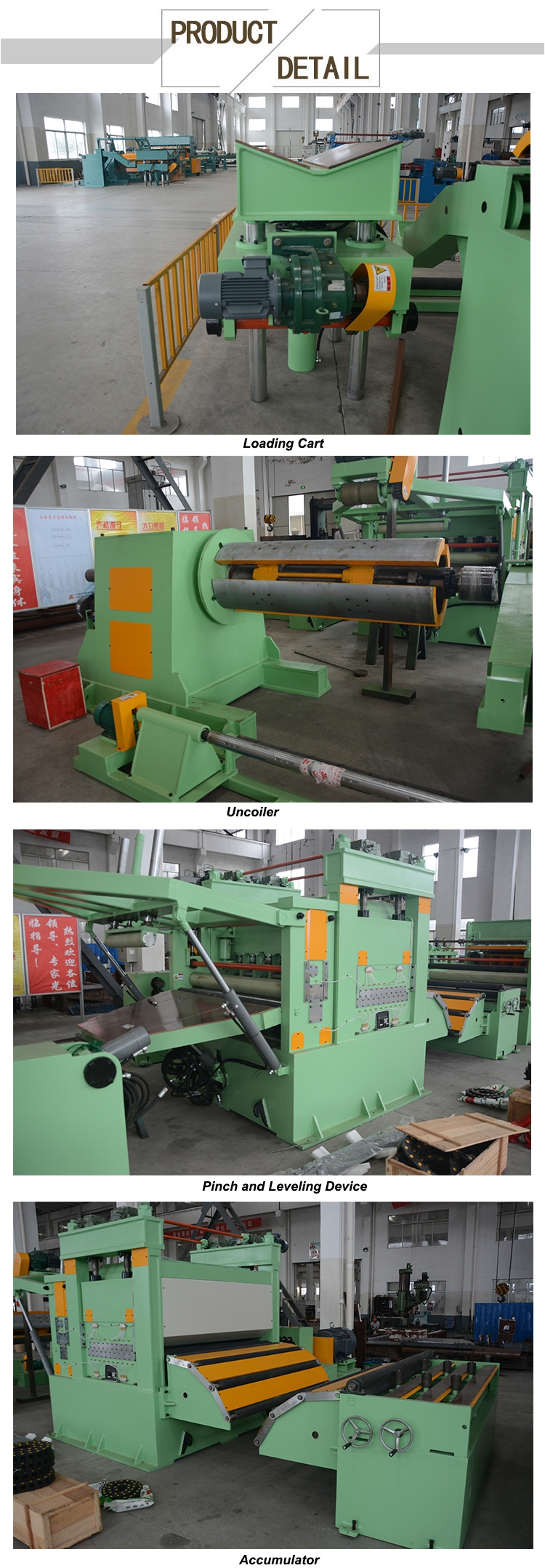

Components Pictures

Welcome To Visit!!

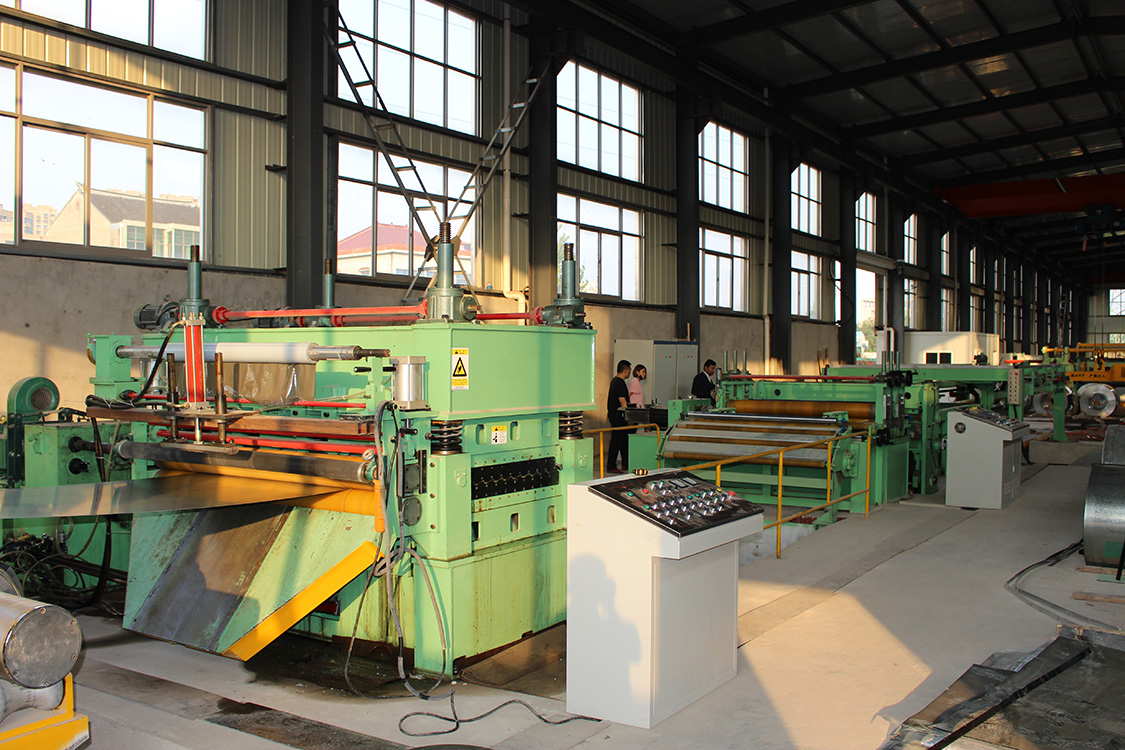

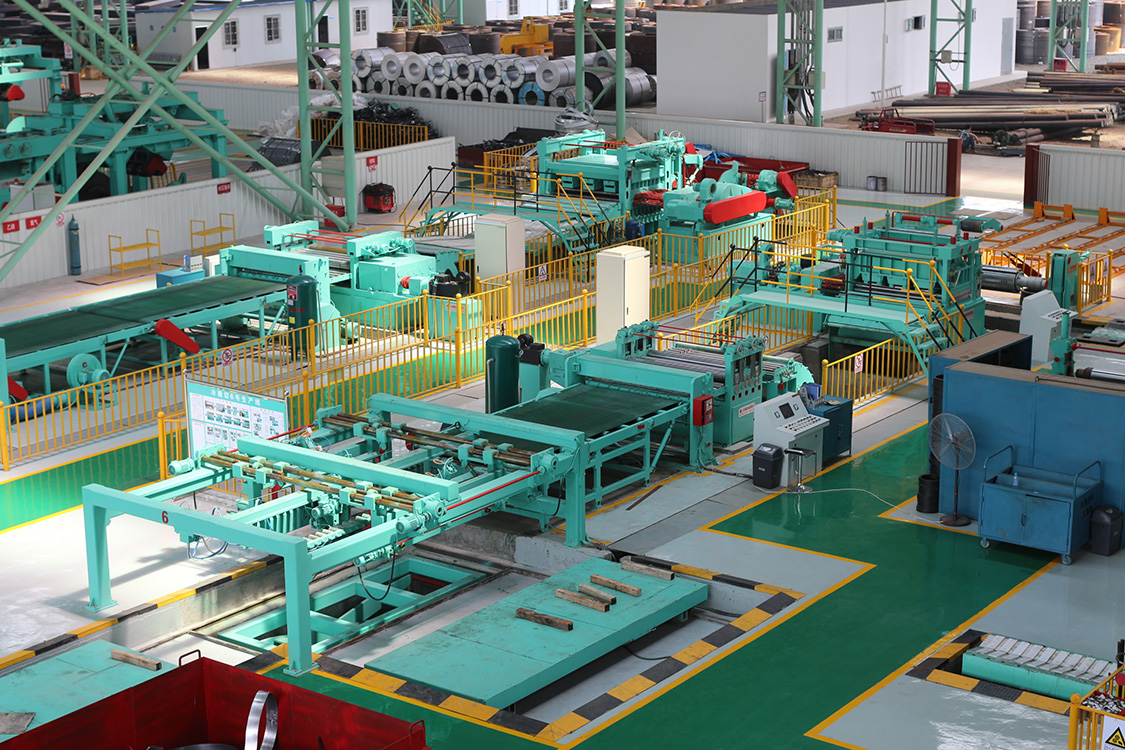

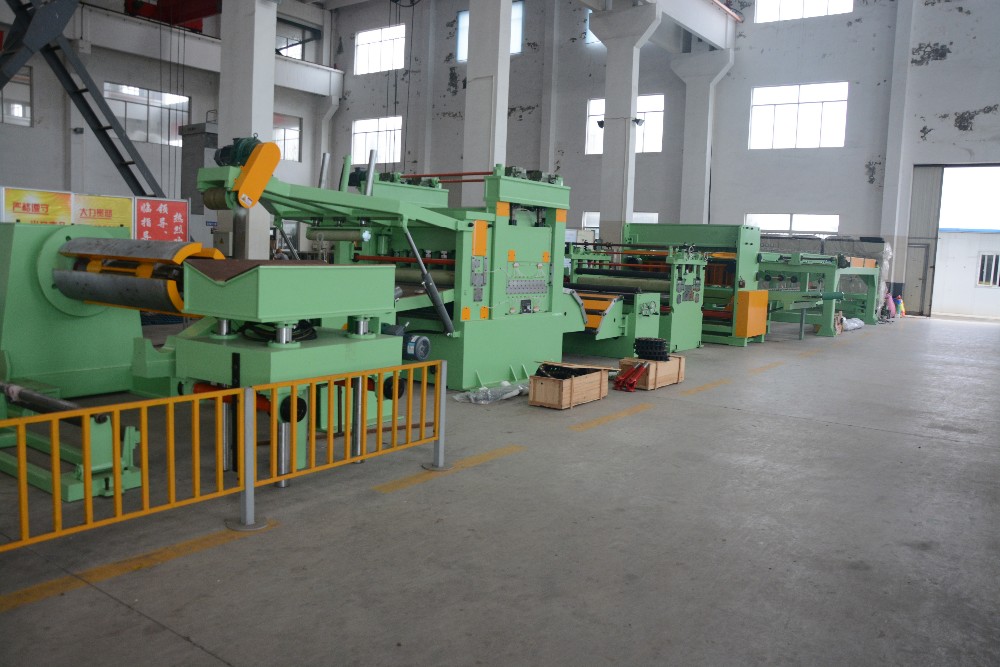

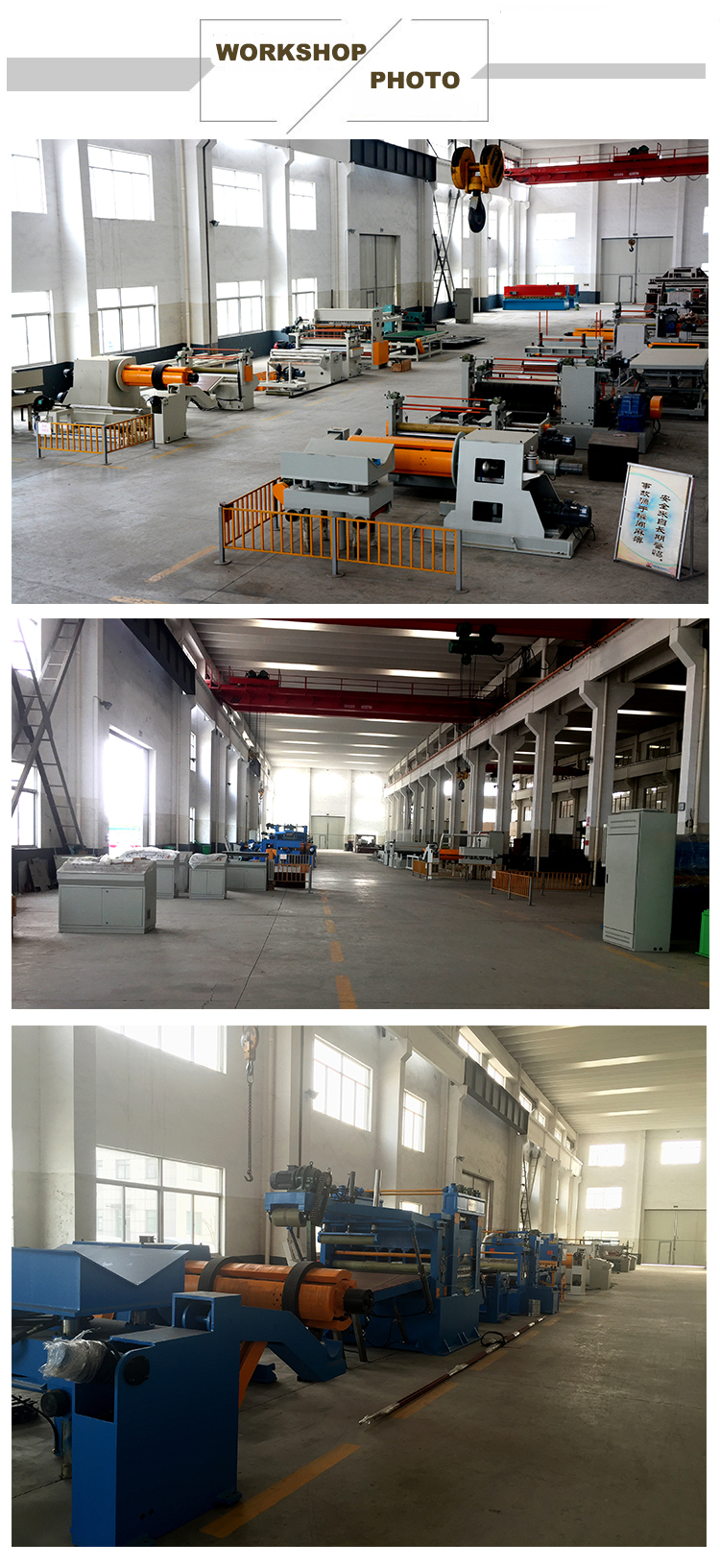

Workshop

Our Service

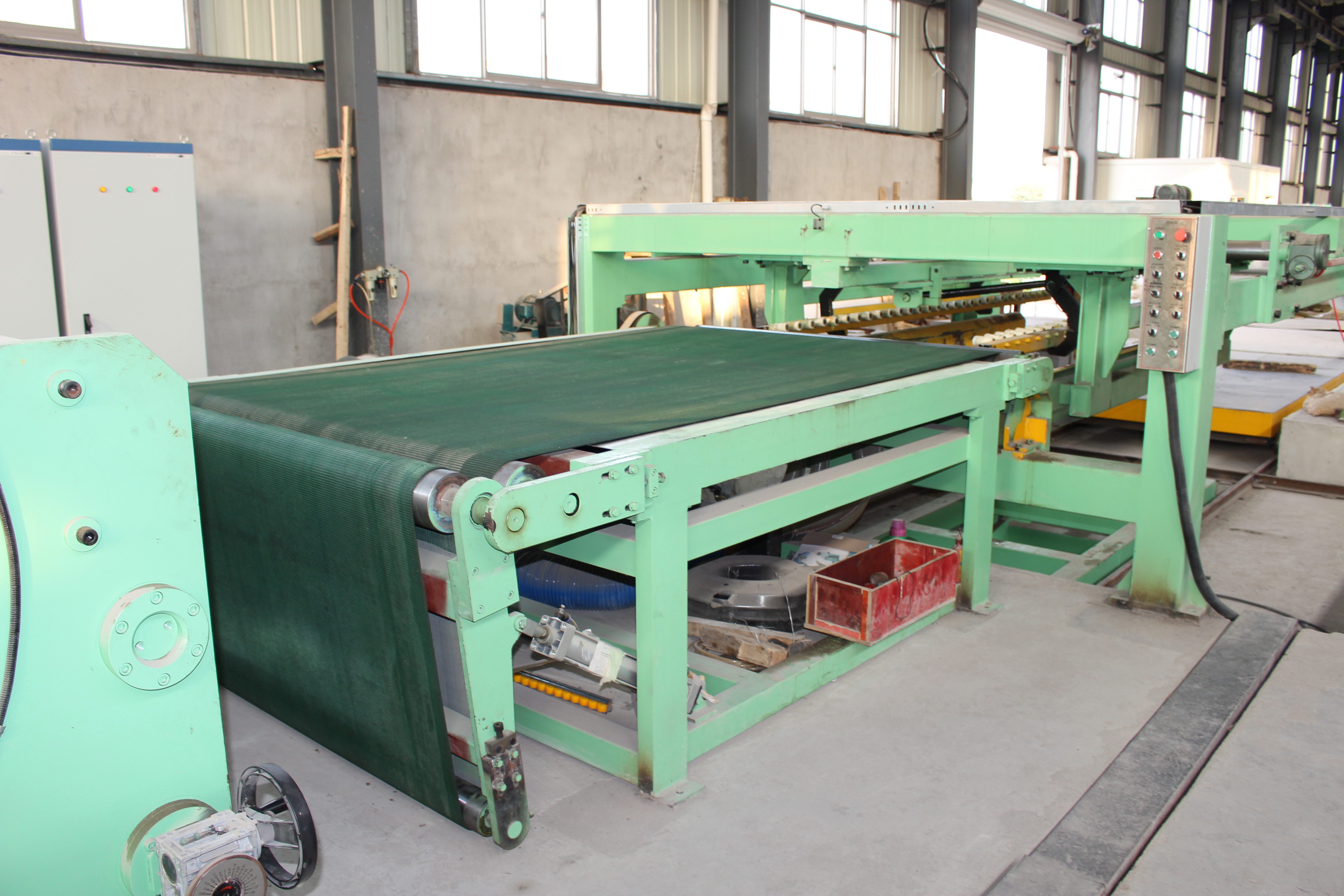

High Speed Coil Cut To Length Levelling Line

Pre-Sales Service

* Inquiry and consulting support.
 * Sample testing support.
 * View our factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
 * Engineers available to service machinery overseas.

FAQ

Q:Are you manufacturer?
A: Yes, we are manufacturers of cut to length machine line,we have our own technical team, and about 80,000 sq.m workshop, welcome to visit us!

Q:What payment terms do you accept?
A: We are flexible on payment terms,we can also help you on financing,please contact us for details!

Q:What information will you need to make the proposal?
A: Coil weight,coil width,coil thickness,coil material, max. cutting length, cutting speed and your special requirements.

Q:What should I do to start a new business?
A: Please contact us immediately,we provide free pre-sales consultant service. Also we can help you to solve the worker training.

Q: Do you provide training and maintenance?
A: Yes. In order to your more efficiency for production, when the machine has arrived at the importer’ s port.
Our company will send engineers to installing the machine and responsible for training the worker of customer until they can operating the machine skillful.
During the warranty time, if the device can 't work normally, after receiving your notice, within 24 hours, we will send
engineers to your factory for processing; If it is artificial damage,then need to charge a cost.
Each machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.

Q:Why choose you?What is the difference between you and other Chinese supplier?
A: We have specialized in this area for over 20 years.Our cut to length line are exported to many countries in the world.
You can get higher quality product & better professional service from Hitech with same price.
