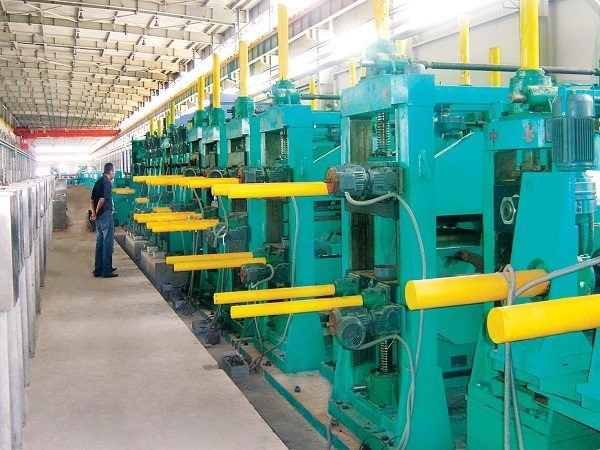

New Pipes Welding Tubes Making Machine/ API ERW Pipes
PRODUCT INTRODUCTION
This high-frequency pipe production line is specialized equipment to produce high frequency straight seam welded pipes for structuralpipe and industrial pipe with Φ20mm~Φ500mm and wall thickness of 0.4~18.0mm. Through optimization design, best materials choice, andaccurately fabrication and rolls, the whole line can be reached high precision and high speed. Within suitable range of pipediameter and wall thickness, pipe production speed can be adjusted.
Production Application
| Product&yield | Round Pipe | 140mm-325mm Thickness:6mm-16mm |
| Length | 6m-12m Length Tolerance: ±3mm |
| Production Speed | 20-50 m/min |
| Production capacity | 55,000ton/year |
| Consumption | Mill installed capacity | 2200 kw |
| Line Area | 180m(length) ×11m (width) |
| worker | 8-10 workers |
| Raw Material | Carbon Steel coil | L245,L360,A53,J55,N80 ,X42,X46,X52,X56,X60,X65,X70 |
| Width | 440mm-1025mm Thickness: 4.0mm-12.7mm |
| Coil ID | 680-1320mm |
| Coil OD | Max 2000mm |
| Coil Weight | 15.0t |
Basic Technical Information of Welded Pipe Production Line
| Product Parameter |
| Product&yield | Round Pipe | 140mm-325mm Thickness:4mm-12mm |
| API pipe mill is specialized for manufacturing straight welded pipe for petroleum and gas pipelines. Taking hot-rolled steel as raw material, it produce required pipes through cold roll forming and suitable welding methods like H.F. welding, submerged arc welding and so on. The whole production line adopts ‘ZTF’ forming technology. |
| Length | 6m-12m Length Tolerance: ±3mm |
| Production Speed | 20-40 m/min |
| Production capacity | 55,000ton/year |
| Consumption | Mill installed capacity | 430 kw |
| Line Area | 130m(length) ×11m (width) |
| worker | 8-10 workers |
| Raw Material | Carbon Steel coil | L245,L360,A53,J55,N80 ,X42,X46,X52,X56,X60,X65,X70 |
| Width | 440mm-1025mm Thickness: 4.0mm-12.7mm |
| Coil ID | 610-700mm |
| Coil OD | Max 2000mm |
| Coil Weight | 15.0t |
Advantage
√ Apply to high strength steel and big thickness
√ Raw material can be steel coil and single plate

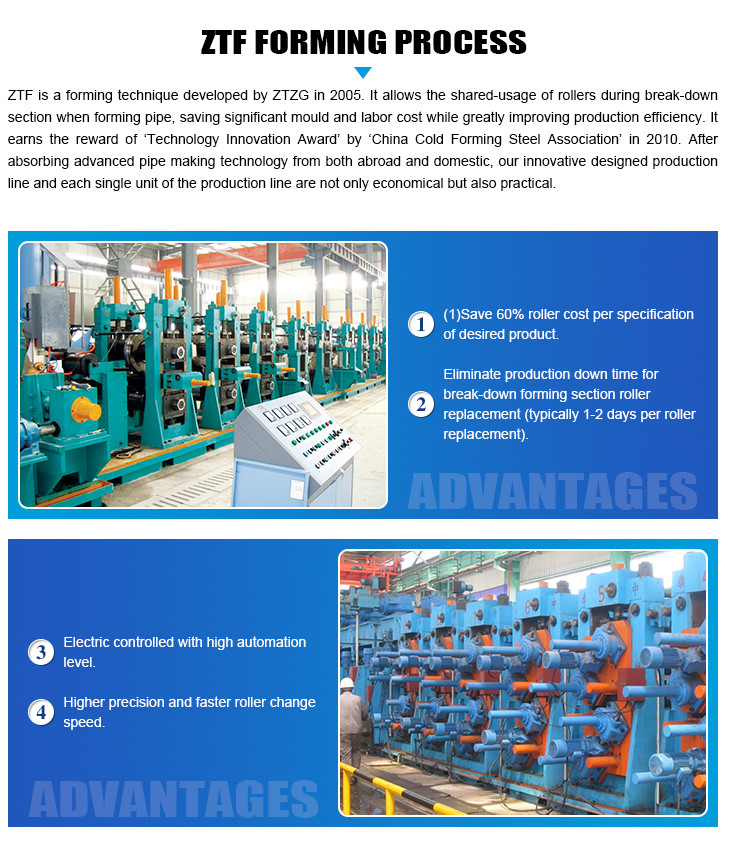

√ ZTF forming process save roller up to 60%
√ Electric control and automatic adjustment, high precision, high roller change speed
Customers Visiting
Trade Show
ZTZG Transport
The First
FAQ
Q:Are you manufacturer?
A:Yes,we are manufacturer.We have our own technical team.Welcome to visit us.
Q:What kind o f payment term you can do?
A:We are flexible about payment terms,we can also help you on financing,please
contact us for details.
Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings,
material information,your special requirements.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we
can help you to solve the material(steel coil)purchase,worker train,international
market price.
Q:How do you do QA?
A:We have special team do strict QA,this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no
leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts
will be inspected for all dimensions.
Q:Why I should choose you,what are the differences between you and other
Chinese suppliers?
A:We are concentrate on this area for more than ten years.
Pre-sale:If the customer can not provide detailed technical information,our engineer
will go to the customer’s plant,draw precise drawings after measuring unit,to meet
your production requirement.
After-sale:Our strong team of engineers and experienced technicians can provide
you with installation instructions,operating instructions,quality control guidance
